2.0t TSI Engine Common Problems to Look out for on VW and Audi's

Thank you so much for visiting our page. Â Hopefully the info below is interesting and helpful. Â If you find this info useful we would really appreciate your support. Â We offer this along with many other helpful DIYs to the VW and Audi community. Â The only thing we ask for in return is your support when you are ready to make a purchase. Â Your support allows us to continue to commit the resources to create pages just like this one.
Â

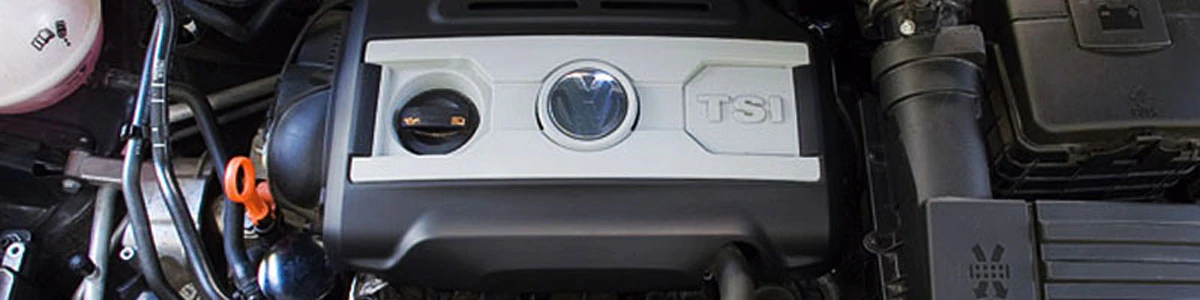

The 2.0T TSI engine is found in almost all main stream VW models between 2008.5 and 2014. Â This is not to be confused with the Audi TFSI (valve lift) engine found in many of the Audi models. Â While these 2 engines share some similarities they also have plenty of differences. Â If you have an earlier model VW or Audi 2.0T you likely have the FSI engine and you can find the FSI Common Problems HERE.
We put together this list of common problems to look out for, so anyone with a 2.0t TSI engine can be prepared.
Â
VW and Audi Models with the 2.0T TSI engineÂ
VW MK5 GTI 2.0T TSI 2008.5-2009
VW MK6 GTI 2.0T TSI 2010-2011-2012-2013-2014
VW MK5 Jetta 2.0T TSI 2008.5-2009-2010
VW MK6 Jetta 2.0T TSI 2011-2012-2013-2014-2014
VW B6 Passat 2.0T TSI 2008.5-2009-2010
VW CC 2.0T TSI 2009-2010-2011-2012-2013-2014-2015
VW EOS 2.0T TSI 2008.5-2009-2010-2011-2012-2013-2014
VW Â Tiguan 2.0T TSI 2009-2010-2011-2012-2013-2014-2015
VW Beetle 2.0T TSI 2012-2013-2014-2015
Â
Audi A3 2.0T TSI 2008.5-2009-2010-2011-2012-2013-2014
Audi MK2 TT 2.0T TSI (not TTS) 2008.5-2009-2010-2011-2012-2013-2014
Â
Â
2.0T TSI Â Ignition Coils and Misfire Fault Codes
If you have having misfire problems on your VW or Audi 2.0T TSI engine ignition coils and spark plugs should be the first place you look. Â We also have a more detailed write up on Diagnosing VW and Audi 2.0T TSI misfires HERE
Â
2.0T TSI Positive Crankcase Vent (PCV ) Valve Fault Codes and DIY
If you have a loud whistling noise coming from your 2.0t TSI engine you might have a bad PCV valve. Â A bad PCV can also cause Fault code 0171 System Too Lean, as well as others. Â Take a look HERE for more info on the TSI PCV issues
Â

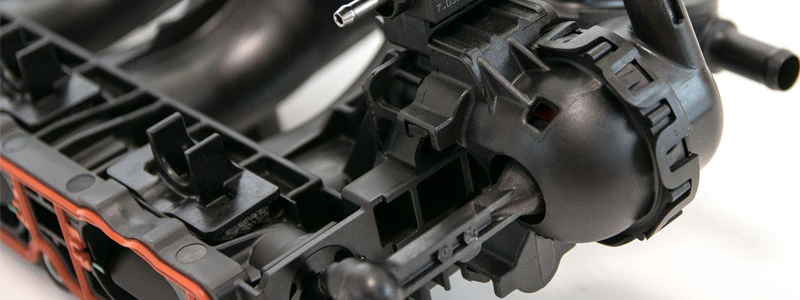

2.0T TSI Intake Manifold Runner Fault Codes
The intake flap motor controls a flap which is inside the TSI intake manifold. Â This motor can often sporadically throw faults for P2015. Â Take a look here for more info about TSI Intake Manfold and Flap Motors.
Â

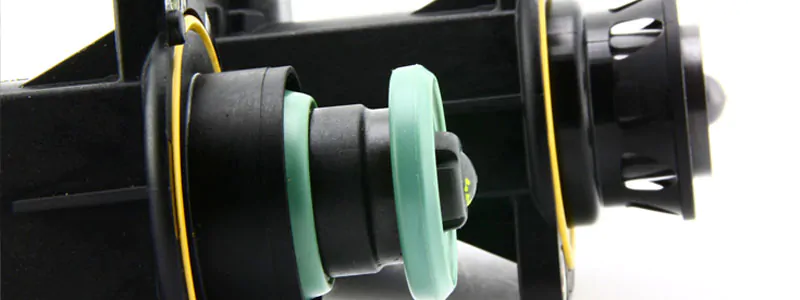

2.0T TSI Diverter Valve (DV) Failures
The Diverter valve or DV holds the boost pressure created by the turbocharger on 2.0T TSI engines. Â Many models came from the factory with an earlier version of this part which used a diaphragm which was common to tear. Â Take a look HERE to find out about TSI bad DV symptoms as well as fault codes.
Â
2.0T TSI High Pressure Fuel Pump (HPFP) Failures
While the FSI engine was known to have issues with fuel pumps and cam followers, the TSI engine has some problems around the HPFP. Â The TSI uses a roller type cam follower so wearing them is no longer and issue, but High pressure fuel pump itself can fail. Â Take a look HERE for more info on TSI High Pressure Fuel Pump failures and fault codes.
Â

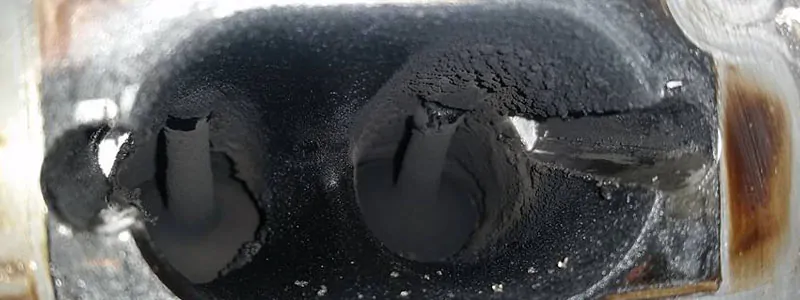

2.0T TSI Carbon Build Up Problems
Almost all direct injection engines have this particular issue which is something that anyone with this engine should be aware of. Â Carbon build up on the intake valves of your TSI can cause cold start misfires, among many other things. Â Take a look HERE to find out more details on TSI Carbon Build Up
Â

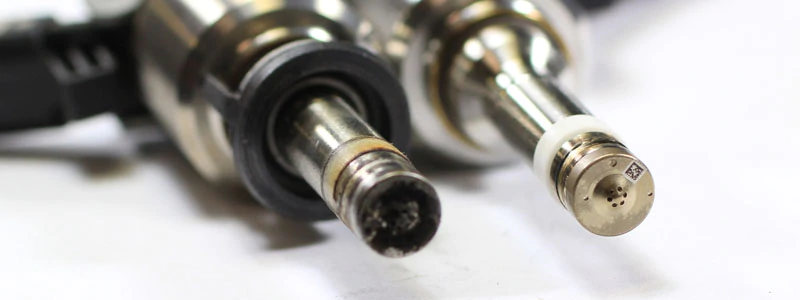

2.0T TSI Fuel Injector Failures
Â
If you're TSI is having misfire issues and you have new Ignition coils and spark plugs, then next thing you are going to want to look at is the fuel injectors. Â Take a look HERE to find out about Bad Fuel Injectors on VW and Audi 2.0T TSI engines.
Â
Â
2.0T TSI Timing Chain Tensioner Problems
The lower timing chain tensioner on the TSI is a potential issue, and it is imperative that any owner should be aware of. Â Failing to neglect this can result in catastrophic failure causing engine damage when the engine jumps time. Â Take a look HERE for more info about TSI Timing Chain Tensioner Failures.
Â

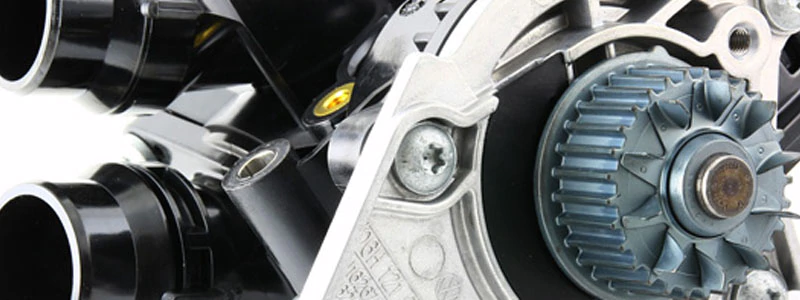

The water pumps on TSI engines are a very common failure item. Â Often times they repeatedly fail due to improper installation of the replacement or an oil leak causing premature failure.
- 2.0t TSI VW/Audi Engine Codes CCTA, CAED, CAEB Water Pump Assembly
- 2.0t TSI Aluminum Water Pump Assembly for CCTA, and CAEB
- 2.0t TSI Aluminum Water Pump Assembly Kit for CCTA, and CAEB
- 2.0t TSI VW/Audi Engine Code CBFA Water Pump Assembly
Â

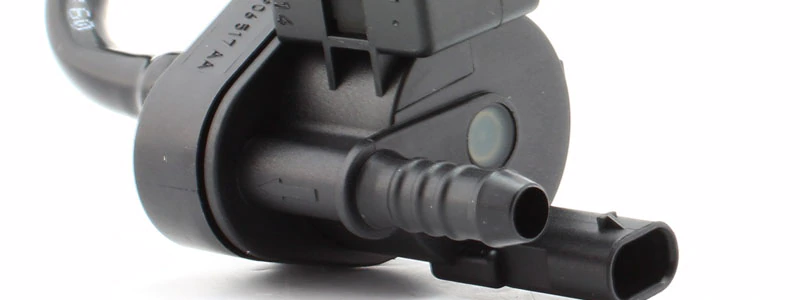

2.0T TSI Evap Purge (N80) Valve Failures
The Evap purge valve often called the N80 valve, sends fuel vapors from the gas tank to the engine to be burned. Â This part can often be the cause of "Check Gas Cap" lights on most VW and Audi 2.0T TSI engines. Â Find out HERE why the N80 Valve causes "Check Gas Cap" lights on the TSI engineÂ
Â
2.0t TSI In Tank Fuel Pump Control Module
Â
The fuel pump control module is mounted under the rear seat of your car.  This is  just above the electrical in tank low pressure fuel pump.  This part can overheat causing issues with the vehicle cutting out.
Click HERE to find out why and how the 2.0t TSI Fuel Pump Module FailsÂ
Â
2.0t TSI Coolant Temp Sensor (Grey) 2 Pin 06a919501A
The Coolant Temperature sensor on the 2.0t TSI engine can cause check engine lights and potential coolant gauge issues. Â Take a look at the article below to find out more
Click Here to find our How the VW 2.0t TSI Coolant Temperature Sensor Fails
Â
Â
In need of a shop to work on your Volkswagen or Audi? If you are located in the Cornelius, Huntersville or Charlotte area, we can help you properly repair or maintain your VW or Audi. Our shop specializes in working on VW and Audi, check us out.
DAP Repair - Your North Charlotte, and Lake Norman Area VW and Audi Repair Shop
