Water Pump Kit (Aluminum) for 2.0t TSI


From $1.09 was $1.28

To $256.91 was $263.94


Water Pump Kit (Aluminum) for 2.0t TSI

Customize Water Pump Kit (Aluminum) for 2.0t TSI

* Required Fields

Your Customization
Water Pump Kit (Aluminum) for VW and Audi 2.0t TSI Engine
Water Pump Kit (Aluminum) for 2.0t TSI

In stock

Manufacturer: Assembled by DAP

Ships In: 1-3 Business Days From our Facility

We accept:

Credit Card



    This kit includes the basic parts we recommend when installing a new water pump in your 2.0t TSI engine.  The aluminum water pump includes should address the major issues with the OEM TSI water pumps.  The other parts are recommended for installation, as you will remove these.  The union between the water pump and the oil cooler includes new seals, you will want to do this to prevent coolant leaks.  The bolt included replaces the mounting bolt holding the water pump belt drive pulley to the intermediate shaft.  The belt is the small water pump drive belt which runs from the intermediate shaft to the water pump gear.  Lastly there is a 1 gallon bottle of concentrated G13 to replace the lost coolant when doing the job (see bottle for mix).

    This Aluminum water pump in this kit solves a major concern with the original 2.0t TSI VW or Audi water pump.  The original 2.0t TSI water pump was made of plastic.  While these water pumps did have some failure potential being made of plastic made this issue ever worse.

    The 2.0t TSI engine can have oil leak issues coming from the cam cradle (valve cover) area.  This oil can run down the front of the engine block on to the water pump housing.  After some time this oil will compromise the plastic of the water pump, causing a coolant leak.   This aluminum water pump housing will not have the same concerns of oil damaging the housing of the water pump.  Prevent any future water pump failures with this aluminum water pump for your 2.0t TSI engine.

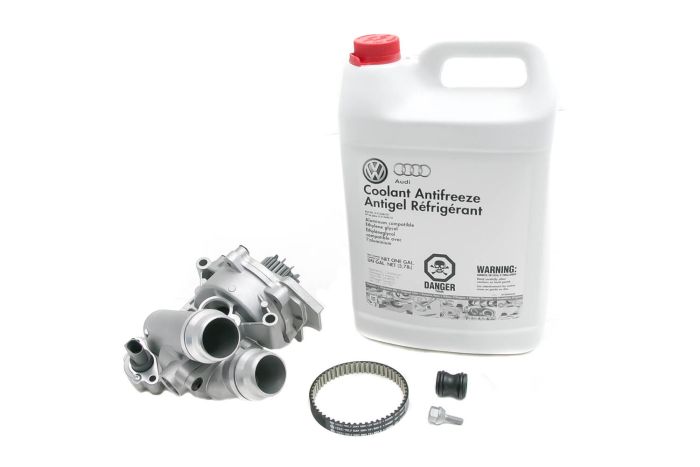

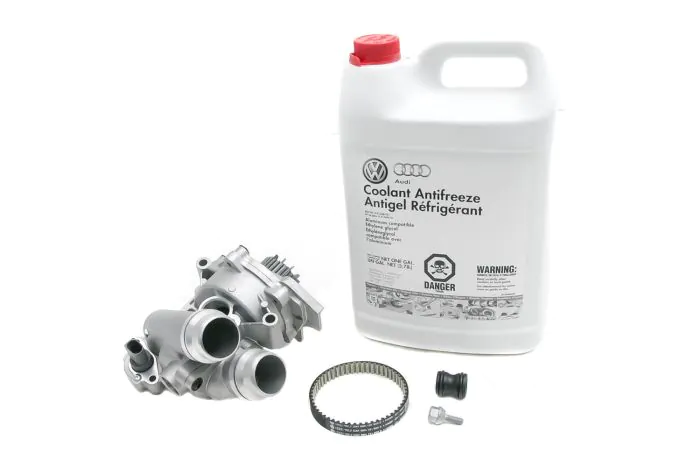

    2.0t TSI Aluminum Water Pump Kit Includes

    Graf Aluminum Housing and Metal Impeller Water Pump for 2.0t TSI

    OEM Water Pump Drive Belt

    OEM Water Pump to Oil Cooler Union

    OEM Bolt for Mounting Intermediate Shaft Drive Pulley

    OEM G13 Coolant 1 Gallon

    Aluminum TSI Water Pump Kit is to be used for VW/Audi Part Numbers

    06H121026DD, 06H-121-026-DD

    06H121026BA, 06H-121-026-BA

    06H121026CF, 06H-121-026-CF

    06H121026CQ, 06H-121-026-CQ

    06H121026AF, 06H-121-026-AF

    06H121026AB, 06H-121-026-AB

    For Engine Codes CCTA, CAED and CAEB

    Here is a great DIY that shows you how to install this TSI Water Pump HERE


    How 2.0t TSI Water Pumps Fail

    Vehicle Application Data
    Manufacturer Assembled by DAP
    Shipping 1-3 Business Days From our Facility
    Vehicle Application Data
    Make Model Engine
    Audi Audi A3 8P 2006-2008 2.0 Turbo TSI
    Audi Audi A3 8P 2009-2013 2.0 Turbo TSI
    Audi Audi B8 A4 2009-2012 2.0 TFSI
    Audi Audi B8 A5 2008-2012 2.0 TFSI
    Audi Audi B8.5 A4 2013-2016 2.0 Turbo (Valve Lift)
    Volkswagen 2009 Sportwagen 2.0 Turbo TSI
    Volkswagen 2009-2011 Tiguan 1 2.0 Turbo TSI
    Volkswagen 2009-2012 CC 2.0 Turbo TSI
    Volkswagen 2010-2014 Sportwagen 2.0 Turbo TSI
    Volkswagen 2012-2018 Tiguan 2 2.0 Turbo TSI
    Volkswagen 2012-Present Beetle 2.0 Turbo TSI
    Volkswagen 2013-2017 CC 2.0 Turbo TSI
    Volkswagen B6 Passat 2006-2010 2.0T TSI
    Volkswagen MK5 GTI 2006-2009 2.0 Turbo TSI
    Volkswagen MK5 Jetta 2005.5-2010 2.0 Turbo TSI
    Volkswagen MK6 GTI 2010-2014 2.0 Turbo TSI
    Volkswagen MK6 Jetta 2011-2014 2.0 Turbo TSI
    Volkswagen VW Eos Parts 2.0 Turbo TSI
