Water Pump Assembly for 2.0t TSI (Graf) All Aluminum

Manufacturer: Graf

Ships In: 30-45 Days (Stock on Order)

Free Shipping *Lower 48 US States Only.

We accept:

Credit Card

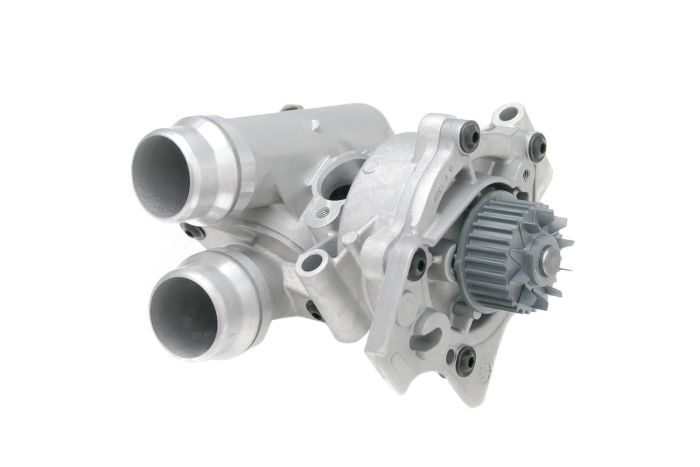

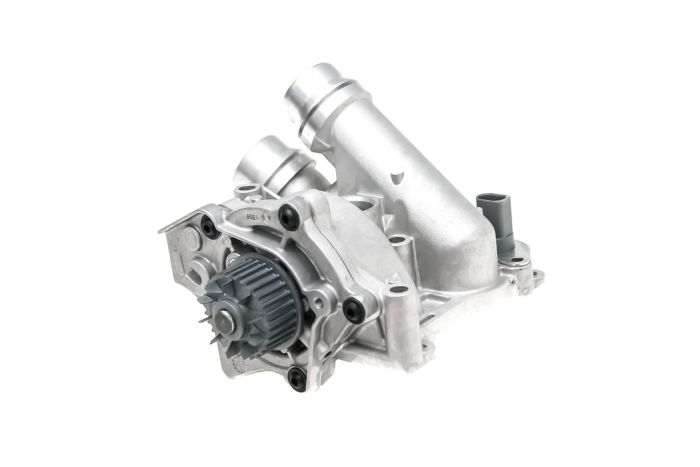

This Aluminum housing and impeller water pump for the 2.0t TSI engine solves a major concern with the original VW or Audi water pump.  The original 2.0t TSI water pump was made of plastic.  While these water pumps did have some failure potential being made of plastic made this issue ever worse.

The 2.0t TSI engine can have oil leak issues coming from the cam cradle (valve cover) area.  This oil can run down the front of the engine block on to the water pump housing.  After some time this oil will compromise the plastic of the water pump, causing a coolant leak.   This aluminum water pump housing will not have the same concerns of oil damaging the housing of the water pump.  Prevent any future water pump failures with this aluminum water pump for your 2.0t TSI engine.

Aluminum TSI Water Pump For VW/Audi Part Numbers

06H121026DD, 06H-121-026-DD

06H121026BA, 06H-121-026-BA

06H121026CF, 06H-121-026-CF

06H121026CQ, 06H-121-026-CQ

06H121026AF, 06H-121-026-AF

06H121026AB, 06H-121-026-AB


For Engine Codes CCTA, CAED and CAEB


Associated Parts

Coolant Pipe (Often replaced with pump) 06H-121-131-C

Belt for 2.0t TSI Water Pump 06H-121-605-E

Balance Shaft Pulley Bolt (for Waterpump Belt) WHT-001-163-B


Here is a great DIY that shows you how to install this TSI Water Pump HERE


How 2.0t TSI Water Pumps Fail

Vehicle Application Data
Manufacturer Graf
Shipping 30-45 Days (Stock on Order)
Vehicle Application Data
Make Model Engine
Audi Audi A3 8P 2006-2008 2.0 Turbo TSI
Audi Audi A3 8P 2009-2013 2.0 Turbo TSI
Audi Audi B8 A4 2009-2012 2.0 TFSI
Audi Audi B8 A5 2008-2012 2.0 TFSI
Audi Audi B8.5 A4 2013-2016 2.0 Turbo (Valve Lift)
Volkswagen 2009 Sportwagen 2.0 Turbo TSI
Volkswagen 2009-2011 Tiguan 1 2.0 Turbo TSI
Volkswagen 2009-2012 CC 2.0 Turbo TSI
Volkswagen 2010-2014 Sportwagen 2.0 Turbo TSI
Volkswagen 2012-Present Beetle 2.0 Turbo TSI
Volkswagen 2013-2017 CC 2.0 Turbo TSI
Volkswagen B6 Passat 2006-2010 2.0T TSI
Volkswagen MK5 GTI 2006-2009 2.0 Turbo TSI
Volkswagen MK5 Jetta 2005.5-2010 2.0 Turbo TSI
Volkswagen MK6 GTI 2010-2014 2.0 Turbo TSI
Volkswagen MK6 Jetta 2011-2014 2.0 Turbo TSI
Volkswagen VW Eos Parts 2.0 Turbo TSI
