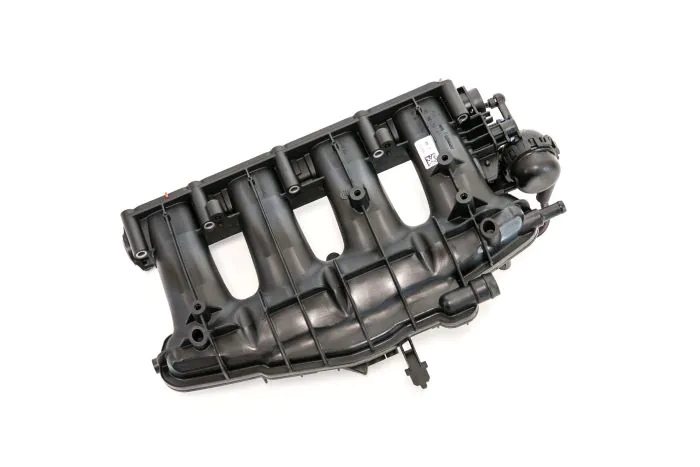

Intake Manifold with Runner Control Motor and Gasket | CCTA & CBFA 2.0 TSI

*Includes intake and throttle body gasket



Replacing your intake manifold can solve a variety of issues with your 2.0t TSI engine.  This can range from check engine lights for flap motor faults, to a poor running condition.  The intake manifold flap motor is very common to go bad which will commonly leave you with a P2015 fault.  While the earlier versions of this intake manifold can have a vacuum leak at the flap motor arm.  This vacuum leak could cause a poor running condition or lean fault codes.  Be sure to update your TSI with the most current version, found here.

Fault number P2015-Intake Manifold Flap Position Sensor (Bank 1): Implausible Signal





Mounting Bolt for Intake Manifold - N-910-896-01 -  Qty 7

Mounting Nut for Intake Manifold - N-015-082-13 - Qty 2

Mounting for Manifold Support Bracket 06F-121-273-A - Qty 1

Manifold Support Bracket 06H-129-723-E - Qty 1

Nut for Support Bracket N-106-092-02 - Qty 1

Bolt for Support Bracket N-106-494-01 - Qty 1

















Replaces 06J-133-201-BD, 06J133201BD, 06J-133-201-AS, 06J133201AS, 06J-133-201-AL, 06J133201AL
