Unitronic MQB Turbo Inlet Elbow

Share
$164.99
SKU
UH012-INA

UNITRONIC TURBO INLET ELBOW FOR 1.8/2.0 TSI GEN3 MQB - UH012INA

Manufacturer: Unitronic

Ships In: 1 Business Day From our Facility

We accept:

Credit Card

Unitronic's new Turbo Inlet Elbow for the 1.8/2.0 TSI MQB ISxx turbochargers is NOW AVAILABLE!

Made from aircraft grade cast Alumimum, Unitronic engineered this direct bolt-on upgrade to eliminate upstream airflow restrictions, allowing for it to both outflow and outperform anything on the market.

Unitronic new turbo inlet elbow was developed utilizing the latest state-of-the-art tools, equipment, and computer aided design software to achieve this unique design that optimizes airflow and speed, while eliminating restrictions, allowing for positive pressure pre-compressor as illustrated in our EFD renderings.

It's important to not only engineer a product to be the best it can, but it's also important to know it's limits. Analyzing maximum airflow is great, but it’s important that the measurements are performed in realistic conditions. In efforts to allow Clients to directly compare the flow data with competitors’ published data, Unitronic performed the airflow tests at 28 inches of water, which is a direct comparison to that of the competitor’s inlet.

With the focus and intent to optimize flow, Unitronic Hardware Engineers extended testing further, optimizing the design through different iterations at different mass flow rates until an acceptable threshold had been reached. It was identified that the stock (OEM) elbow was only able to handle up to 30 lbs/min (380 CFM) before it began to choke, causing air cavitation, ultimately resulting in a restriction to the overall performance of the turbo and system.

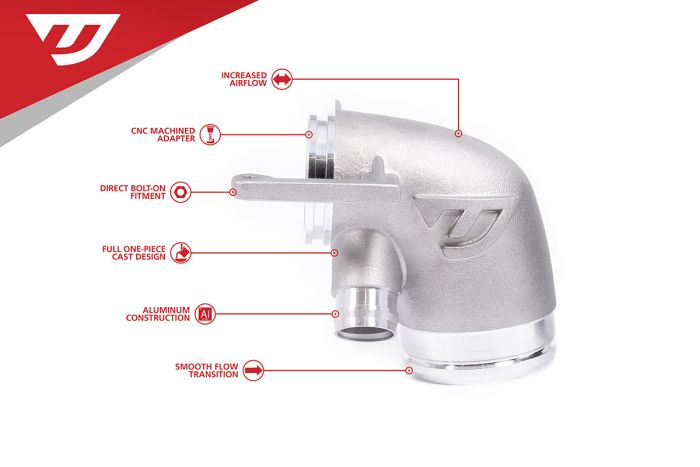

Unitronic’s Turbo Inlet Elbow features full one-piece design with CNC-machined inlet and outlets, fully integrated (non-pressed in) CNC-machined PCV inlet, tapered outlet mouth for an ultra-smooth flow-matched airflow transition into the turbocharger, and includes a fully integrated bracket for a direct bolt-on fitment that installs within minutes and minimal tools.


FEATURES
  • Made from aircraft grade cast Aluminum

  • Outflows the stock (OEM) unit

  • Supports unrestricted airflow up to 50 lb/min

  • Full one-piece design (PCV inlet port and securing arm)

  • Fully integrated CNC-machined PCV inlet

  • CNC-machined inlet and outlet

  • Tapered outlet mouth for ultra smooth flow-matched airflow transition

  • Direct bolt-on fitment

  • Installs within minutes with minimal basic tools


Vehicle Application Data
Manufacturer Unitronic
Shipping 1 Business Day From our Facility
Vehicle Application Data
Make Model Engine
Intakes
MK7 ALLTRACK
MK7 GLI
MK7 GOLF
MK7 GOLFWAGON
MK7 GTI
MK7 R
MK7.5 GTI
MK7.5 R
Turbo Inlet
Turbo Inlet Pipes
Audi Audi A3 - 8V (2014-Current) 2.0 TFSI
Audi Audi MK3 TT (2016-Current) 2.0T
Audi Audi MK3 TTS (2016-Current)
Audi Audi MK3 TTS (2016-Current) 2.0T
Audi Audi S3 - 8V (2015-Current)
Audi Audi S3 - 8V (2015-Current) 2.0T
Volkswagen MK7 GLI (2019 - Current)
Volkswagen MK7 GTI 2015-2017
Volkswagen MK7 GTI 2015-2017 2.0T MQB
Volkswagen MK7 Golf (2015-2021)
Volkswagen MK7 Golf Alltrack (2017-2021)
Volkswagen MK7 Golf Alltrack (2017-2021) 1.8T MQB
Volkswagen MK7 Golf R (2015-2017)
Volkswagen MK7 Golf R (2015-2017) 2.0T MQB
Volkswagen MK7 Golf Wagon (2015-2021)
Volkswagen MK7.5 GTI Facelift (2018-2021)
Volkswagen MK7.5 GTI Facelift (2018-2021) 2.0T MQB
Volkswagen MK7.5 Golf R Facelift (2018-2021)
