Turbo Inlet System (Elbow & Silicone Hose) | MQBe w/ CONTINENTAL Turbo

Share
$252.82
SKU
VWR120010

Manufacturer: Racingline

Ships In: 1 Business Day From our Facility

Secured Payment Options:

Credit Card

TURBO INLET SYSTEM

FOR 2.0TSI 'HIGHER OUTPUT' 300PS - 320PS EA888.4

Release power with the 2.0 TSI gen 4 Turbo Inlet System. A significantly enlarged airflow path from intake straight into turbo.

For the Continental turbo (higher output) 300-320ps engines such as Golf 8 R, Golf 8 GTI CS, Audi S3 8Y, Cupra Leon and Formentor models.

WHAT THE TURBO INLET SYSTEM DOES.

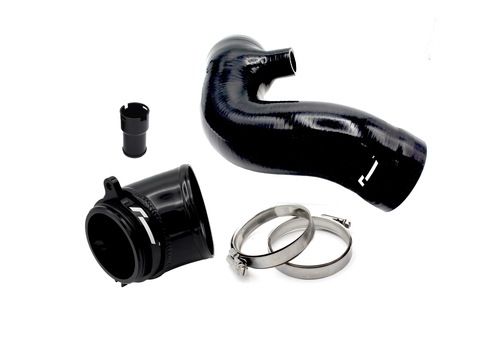

Our new Turbo Inlet System for the 300-320PS MQB 'EVO' cars such as Golf 8R, GTI CS, Audi S3 8Y etc is a matched package of our much larger diameter, free flowing Turbo 90 Inlet paired with reinforced Silicone Turbo Inlet Hose for much higher airflow between intake and turbo.

  • The factory inlet forces the airflow to pass through the restrictive plastic 'bellows' pipe, before tapering right down to run through a tight and restrictive plastic turbo inlet - in other words, terrible for flow.
  • The RacingLine Turbo Inlet System replaces this pipework with a larger diameter smooth-flowing silicon hose mated to a larger diameter thin-wall free flowing intake elbow.
  • The internal diameter of the Turbo 90 Inlet is massively increased from 74mm on the factory part right up to 84mm.
  • It's by combining the two parts of the kit that's allowed us to enlarge the diameter of both the Inlet and the Hose so much - and so give the maximum possible gains.
  • Put simply, without it, you’re wasting much of the potential of your high-flow intake system without fitting this Turbo Inlet System. An essential upgrade!



PRECISION ENGINEERED FOR PERFECT PERFORMANCE.

  • Reinforced high quality silicone prevents deformation under load or heat
  • Flexible enough to allow just the right amount of engine movement under load
  • Internally-stepped silicone to ensure smooth transitions
  • CNC constructed from T6-6061 aircraft grade aluminium with Viton sealing O-ring
  • Maximum 88mm outer diameter with ultra-thin wall 2mm tube, smoothed internal bore
  • Polished then anodised in gloss black to look good, and stay looking good.

Vehicle Application Data
Manufacturer Racingline
Shipping 1 Business Day From our Facility
Vehicle Application Data
Make Model Engine
Audi Audi S3 - 8Y (2022-Current) 2.0T MQBe
Volkswagen
Volkswagen MK8 Golf R (2022-Current) 2.0T MQBe
