Ignition Coil Connector with Terminal Tool

Ignition coil electrical connectors are commonly broken on VW and Audi engines.  These connectors have a release tab located at the back of the connector which allows them to be unplugged.  Often times dirt can build up between the connector making them very difficult to remove.  When this happens its often believed the latch is stuck causing users to push harder on the release tab until it breaks.

Replacing your broken VW or Audi ignition Coil Connector pretty simple.  This requires removing the purple slide latch, inserting the included terminal tool and removing the pins 1 at a time from the electrical connector.  You should then insert them into your new electrical connector (after removing the purple lock), 1 at a time ensuring you install them in the correct order.  You may also consider taking a picture with your phone before you start removing wires.

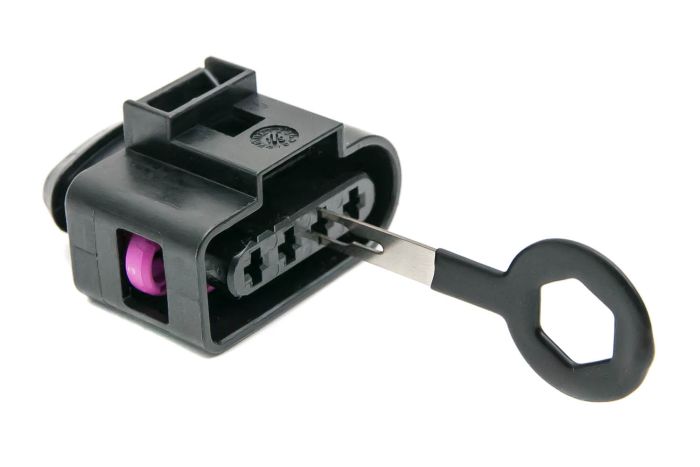

Ignition Coil Connector Includes

• Electrical Connector for Ignition Coil
• Electrical Terminal Tool with Black rubber handle

To Be used for these Ignition Coils

06E905115A

06E905115B

06E905115C

06E905115D

06E905115E

06E905115F

06E905115G

07K905715A

07K905715B

07K905715C

07K905715D

07K905715E

07K905715F

07K905715G
