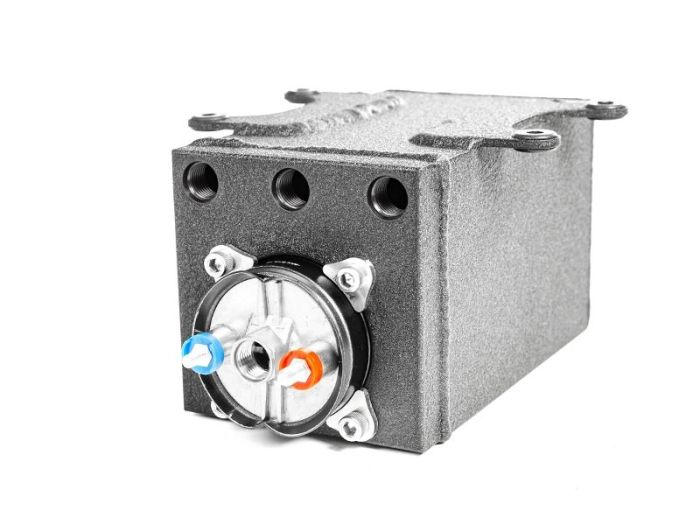

IE Single Submerged Billet Surge Tank for Bosch 044 & AEM 380LPH Fuel Pumps w/ Corrosive Fuel Upgrade
On all orders over $99.00
7 days money back gutarantee
We support 24/24h on day
Safe shopping guarantee
Prevent fuel starvation issues and provide a reliable constant draw of fuel with an IE submerged surge tank. The surge tank provides a constant fuel supply, even under aggressive cornering, acceleration, and high fuel consumption situations. The universal design will work with any traditional return style fuel system and supply enough fuel to power up to 800HP!
Product Features
Fuel Pump Compatibility
Corrosive Fuel Upgrade
When running corrosive fuels such as E85, methanol, or race ethonal mixtures an optional surge tank corrosive fuel upgrade is available. Adding the corrosive fuel upgrade we treat the interior of the surge tank with a specialized anodizing treatment to protect the surge tank alloy form damaging fuels.
Surge Tank Measurements
Recommended Surge Tank Use
Integrated Engineering's innovative surge tank design is essential for drag race, track, and drift cars. During hard cornering or acceleration, the stock pump will frequently have fuel starvation due to the fuel tank angles. The surge tank is also a great solution for mounting and plumbing high powered street cars. Once installed, you can use a factory in-tank or inline pump to feed the surge tank and keep it full in most applications.
Surge Tank Construction
The pumps are o ring sealed using an in-house machined top plate. To provide a leak-proof supply of fuel to the surge tank three -6AN o-ring boss inputs/outputs have been machined to the top plate. The -6 o ring boss inputs/outputs can be customized for a large variety of fuel fittings such as AN bends, AN straights, stainless hose connections, push lock hose, braided lines, hard lines, and more. The back of the machined top plate has been fully pocketed out to remove excess weight. The fuel pump is secured to the top plate using stainless mount brackets and hardware providing reliable operation.
Installation
IE surge tanks are a universal part that can be fitted to many different vehicles and fuel systems. The installation will vary depending on many variables that will differ on all builds. Click here to download the installation/plumbing guide.
