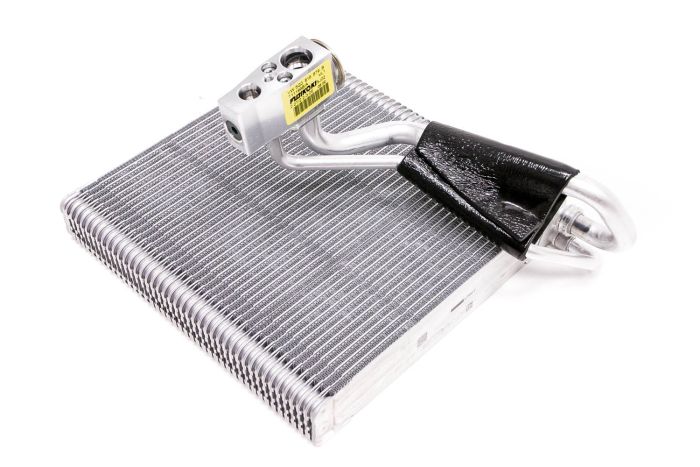

A/C Evaporator Core w/ Expansion Valve

A/C evaporator core with pre-installed expansion valve. This unit is mounted inside the HVAC box and is responsible for absorbing heat from the cabin air as part of the air conditioning system.

This is an OEM-style replacement evaporator assembly used on many MQB-based VW and Audi models equipped with automatic climate control and a conventional A/C system (no heat pump). The expansion valve is integrated with the core, just like the original factory design, for proper refrigerant flow and cooling performance.

• Includes: Evaporator core with attached A/C expansion valve
• Location: Mounted in the HVAC/air box behind the dashboard
• Function: Cools cabin air by allowing refrigerant to expand and absorb heat
• Direct-fit replacement for the original leaking or clogged evaporator core

Replaces the following part numbers (supersessions may apply):

• 5Q1 816 100 A
• 5Q1 820 102 B
• 5Q1 820 102 D
• 5QM 816 103 A
• V04 018 002 A

Typical Applications (example vehicles):

Commonly found on many 2015+ VW & Audi MQB chassis models, including but not limited to:

• Audi A3 / S3 / RS3 (8V)
• VW Golf, GTI, Golf R
• VW Golf SportWagen & Golf Alltrack
• VW e-Golf (non–heat pump applications)
• VW Tiguan and other related MQB models

Note: Exact fitment depends on year, engine, drivetrain, and HVAC configuration (manual vs. automatic climate control, with/without heat pump or auxiliary heater). Always confirm fitment by VIN before ordering.

Installation Notes:

• Dashboard/HVAC box removal is typically required to access the evaporator core.
• A/C system must be properly discharged and recharged by a properly equipped shop.
• We recommend replacing associated O-rings and seals any time A/C lines are opened.

Ideal repair solution for loss of cooling due to an internally leaking or contaminated evaporator, restoring proper A/C performance and reliability.
