CTS Turbo MK5 2.0T Direct Fit FMIC Kit

Share
$799.99
SKU
CTS-20T-MK5-DF

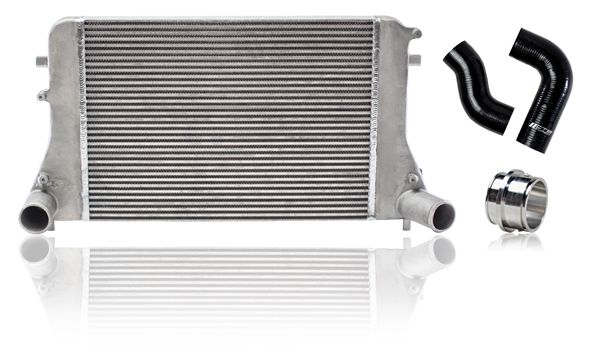

CTS Turbo MK5 2.0T Direct Fit FMIC Kit

Manufacturer: CTS Turbo

Ships In: Ships Directly from Supplier

Free Shipping *Lower 48 US States Only.

We accept:

Credit Card

The CTS MK6 2.0T Direct Fit FMIC Kit is designed as a drop in replacement for the OEM front mounted intercooler (FMIC).  That means you can install this kit without any trimming or modification of the bumper.  The OEM FMIC is adequate for stock boost levels, however once boost levels are increased by way of ECU upgrades/chipping the OEM FMIC struggles to keep the charged air temperatures in check.  Higher charged air temperatures can result in boost cut and timing pull, both reducing the amount of power your vehicle produces.

The CTS direct fit FMIC uses a high efficiency bar and plate intercooler core, which aids in reducing pressure drop.  Reducing pressure drop means that your turbo will not have to work as hard to make a given level of boost.  If your turbo makes 30psi of boost pressure in the turbocharger, and your intercooler has a 10psi pressure drop then the boost measured by your ECU would be (30psi - 10psi) = 20psi.  With an efficient FMIC like the CTS direct fit FMIC your turbo does not have to work as hard to reach desired boost levels.  This is beneficial in two ways, the turbo life expectancy is increased due to more efficient operation, and boost leaving the turbocharger is cooler and more dense resulting in more power to the ground.

Product Details:

- Efficient bar and plate construction
- Direct bolt-in installation
- 4-ply silicon hoses and billet adapter to turbo outlet pipe
- High quality stainless steel clamps
- Low pressure drop
- Maintains factory mounting points
- No trimming of bumper or crash supports
- Rated for power levels in excess of 600HP
- Core dimensions: 23.00 Length x 2.00" Tall x 16.5" Height
- Cast aluminium end tanks with mounting points that are CAST into the end tank, NOT welded like inferior intercoolers

Vehicle Application Data
Manufacturer CTS Turbo
Shipping Ships Directly from Supplier
Vehicle Application Data
Make Model Engine
Intercoolers & Intercooler Kits
Volkswagen MK5 GTI 2006-2009 2.0 Turbo FSI
Volkswagen MK5 Jetta 2005.5-2010 2.0 Turbo FSI
