CTS Turbo Crank Pulley Upgrade (180mm) - 3.0T V6

Share
$379.99
SKU
CTS-HW-266-180

CTS Turbo Crank Pulley Upgrade (180mm) - 3.0T V6

Manufacturer: CTS Turbo

Ships In: Ships Directly from Supplier

Free Shipping *Lower 48 US States Only.

We accept:

Credit Card

CTS Turbo is proud to release their Crank Pulley Upgrade Kit for 3.0T FSI.

At 180mm, this CTS pulley is larger diameter than stock and made from precision billet T66061 aluminum. It replaces the two piece design of the stock pulley and also reduces the rotational mass of the crank, freeing up horsepower.

The larger diameter pulley will increase the speed at which the supercharger spins and will increase the boost pressure output.  Increased boost pressure in conjunction with upgraded ECU software results in a dramatic increase in horsepower and torque throughout the entire powerband. This will not increase stress or excessive wear on supercharger or engine components.

NOTE: This kit must be used with appropriate "Stage 2" performance software.
Stage 2+ performance software (not included) will allow you to achieve maximum boost and power from your 3.0T while safely optimizing air fuel ratios, timing, and boost pressure bleed off.

Most Stage 2+ software tunes for 180mm pulley are compatible with this kit.

Click here for installation guide

Product Details

    Made in house at CTS Turbo, in Canada
    Precision CNC machined from billet T66061 aluminum.
    OEM-spec honing and tolerances
    Replacement crank pulley belt
    Anodized black for long-lasting OEM looking finish

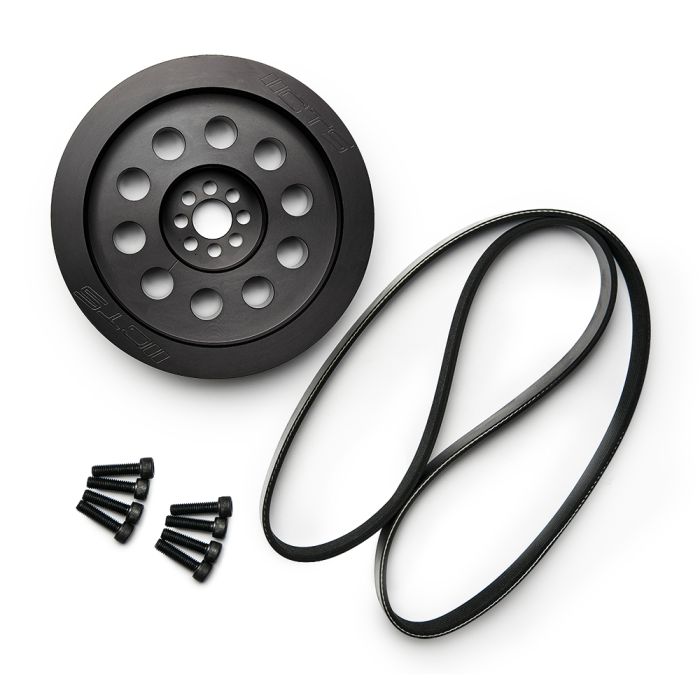

Includes

    CTS Turbo Crank Pulley (180mm)
    8 x Grade 12.9 bolts
    1 x Bando Crankshaft belt (Made in the USA)


Application

Audi 3.0T V6 24V SC

    S4    B8/B8.5 (2010-2016)
    S5    B8/B8.5 (2010-2016)
    SQ5    B8 (2014+)
    Q5    B8 (2009+)
    A6    C6 (2005.5 - 2011)
    A6    C7 (2012+)
    A7    C7 (2012+)

Vehicle Application Data
Manufacturer CTS Turbo
Shipping Ships Directly from Supplier
Vehicle Application Data
Make Model Engine
Audi 2011-Present (C7 Chassis) 3.0t
Audi Audi B8 S4 2010-2012 3.0T (Supercharged)
Audi Audi B8 S5 2008-2012 3.0T (Supercharged)
Audi Audi B8 S5 Convertible 3.0t
Audi Audi B8.5 S4 2013-2017 3.0T (Supercharged)
Audi Audi B8.5 S5 Convertible 3.0t
Audi Audi C6 A6 2005-2011 3.0T V6
Audi Audi C7 A6 2012-PRESENT 3.0T V6
Audi Audi D4 A8 2011-Current 3.0t
Audi Audi Q5 2009-Current 3.0T (Supercharged)
Audi Q7 2005-2015 (4L Chassis) 3.0T (Supercharged)
Audi SQ5 2014-2017 3.0t (Supercharged)
