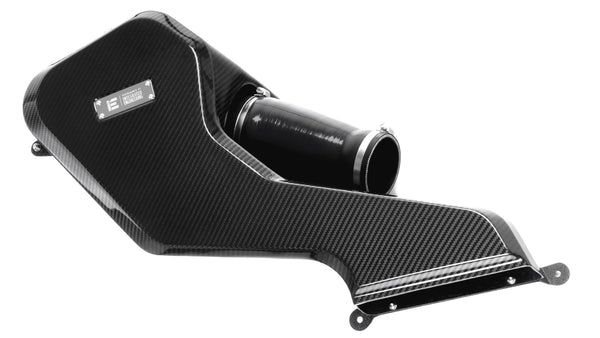

IE Carbon Fiber Intake System For Audi B9 SQ5 3.0T

IE Carbon Fiber Intake System For Audi B9 SQ5 3.0T

IE Carbon Fiber Intake System For Audi B9 SQ5 3.0T

Share
SKU:
IEINCZ1

Ships In: Ships Directly from Supplier ? "Ships in" reflects an estimated lead time before this item will leave via the shipping method selected.Please Note: Selecting an expedited shipping method during the checkout process will not change the "Ships in" time frame.

$949.99
  • FREE Worldwide Shipping

    Fast & free shipping

    On all orders over $99.00

  • Money Back Gurantee

    Money Back Gurantee

    7 days money back gutarantee

  • SUPPORT 24/7

    Support 24/7

    We support 24/24h on day

  • Safe shopping guarantee

    Secure Payment

    Safe shopping guarantee

LEADING FEATURES

  • High-gloss genuine carbon fiber construction
  • Leak-free seamless 1-piece airbox
  • Up to 19HP & 21ft-lbs over stock (with IE turbo inlet)
  • Flow 28% more than the stock intake system
  • Flow 44.2% more than stock intake (with IE turbo inlet)
  • Enhanced turbo & engine sound
  • High pressure & low pressure air zones
  • Maximized turbo & engine efficiency
  • Huge 5" air filter & velocity stack for excellent laminar flow
  • Upgrade to hybrid turbos a bolt-in job with no flow reducitons
  • Factory style mounts for reliable & easy installation
  • All stainless hardware
  • Multi-ply silicone with stop-flat edges
  • High-quality clamps
  • Powder-coated aluminum filter plate
  • Stainless laser-etched logo plate

CARBON FIBER - MORE THAN STYLE

Carbon fiber allows our engineers to create complex shapes and angles to maximize internal volume while maintaining high resistance to heat. This design practice utilizes every millimeter available in the engine bay, providing a much larger air supply and smooth flow.

SEAMLESS DESIGN

Our unique 1-piece airbox design offers a seamless and beautiful look without chances of air leaks, finicky installation, rubbing noises, or parts working loose over time, common with multi-peace airbox designs.

BUILT-IN VELOCITY STACK

The built-in velocity stack smoothly reduces airflow from the massive 5" air filter down to the turbo inlet with excellent laminar properties. This transition creates a very high inertia flow from the huge filter with very low drag or power-robbing turbulence.

OPTIONAL TURBO INLET

Upgrading your intake with an IE cast turbo further removes significant airflow restrictions and maintains the largest size possible from the intake to the turbocharger. This combination increases flow from 28% (intake only) up to 57.6% over the stock intake and turbo inlet! Turbo inlet pipe is an optional upgrade and can be purchased with your intake or added at a later date.

HYBRID TURBO READY

Your IE SQ5 intake and turbo inlet will make the process of upgrading to a hybrid turbo a simple bolt-in job. Our cast turbo inlet design utilizes CNC-machined and o ring sealed adapter rings to fit either the stock or a variety of aftermarket turbos without hassle. The turbo inlet always adapts down to the turbo to not introduce any restrictions and maintain the largest size possible when upgrading turbos.

Hybrid turbo adapter rings are sold separately from the turbo inlet upgrade.

IE SQ5 INTAKE SYSTEM & TURBO INLET PIPE PICTURED WITH TTE710 HYBRID TURBO



MULTIPLE PRESSURE ZONES

The intake takes advantage of multiple air supply avenues to support any power level. The front large air inlet receives outside high-pressure flow from the front of the grille and acts as a ram air design for most of the air supply. Additionally, the filter plate louvers pull extra required air from the low-pressure zone under the intake. These dual zones provide a free air supply across the entire filter and ensure your intake will never be a power limiter for even the most extreme builds.

UNIQUE SOUND

Your sporty SUV is equipped with a 6-cylinder turbocharged engine -sound like one!

The factory airbox is designed to mute all engine and turbo sounds. When upgrading to an IE intake system, you will instantly become addicted to the new turbocharger spool, engine throttle, and diverter valve symphony under the hood. Your SQ5 won't only pull harder, it will also sound classy, refined, and powerful.

PRECISION FIT

3D scanning tools are leveraged to create a digital duplicate of the vehicle's engine bay, grille, bumper, and hood. These high-resolution scans provide a digital environment that allows our engineers to take advantage of all available space while ensuring a perfect fit.


This product fits the following models
Vehicle Application Data
