Basic Suspension Kit for MK7/MK8 Coilover or Spring Installs
On all orders over $99.00
7 days money back gutarantee
We support 24/24h on day
Safe shopping guarantee

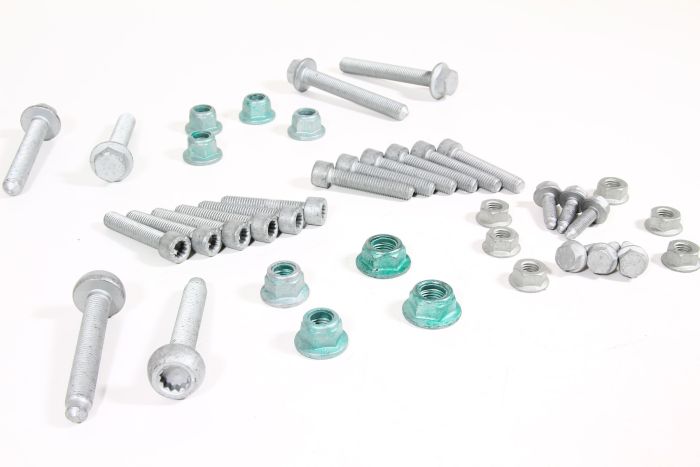

This suspension kit replaces all hardware (mounts excluded) you remove when installing new MK7/MK8 suspension. Good for spring or coilover installs, including all the hardware that VW recommends replacing whenever each is removed. Our suspension hardware kit uses all OEM parts to ensure the best quality products you can install on your MK7/MK8.
For Standard and DCC (electronically regulated dampening) suspensions.
Front
OEM VW Strut Pinch Bolt (Qty 2) – Tq spec: 70 Nm + 180°
OEM VW Pinch Bolt Nut (Qty 2) – Tq spec: 70 Nm + 180°
OEM VW Ball Joint Nut (Qty 6) – Tq spec: 40 Nm + 45°
OEM VW Strut Top Bolt (Qty 6) – Tq spec: 15 Nm + 90°
OEM VW Strut Mount Nut (Qty 2) – Tq spec: 60 Nm
OEM VW Inner Axle Bolts (Qty 12) DSG and Manual – Tq spec: 70 Nm
Rear
OEM VW Bolt Spindle to Control Arm (Qty 2)
OEM VW Nut Spindle to Control Arm (Qty 2)
OEM VW Bolt Lower Shock to Control Arm (Qty 2) – Tq spec: 70 Nm + 180°
OEM VW Nut Lower Shock to Control Arm (Qty 2) – Tq spec: 70 Nm + 180°
