034Motorsport Billet Aluminum DSG Breather Catch Can Kit for Audi 8Y A3/S3

034Motorsport Billet Aluminum DSG Breather Catch Can Kit for Audi 8Y A3/S3

034Motorsport Billet Aluminum DSG Breather Catch Can Kit for Audi 8Y A3/S3

SKU:
034-504-Z036

Availability: Ships Directly from Supplier ? "Ships in" reflects an estimated lead time before this item will leave via the shipping method selected.Please Note: Selecting an expedited shipping method during the checkout process will not change the "Ships in" time frame.

$300.00
  • FREE Worldwide Shipping

    Fast & free shipping

    On all orders over $99.00

  • Money Back Gurantee

    Money Back Gurantee

    7 days money back gutarantee

  • SUPPORT 24/7

    Support 24/7

    We support 24/24h on day

  • Safe shopping guarantee

    Secure Payment

    Safe shopping guarantee

DSG Catch Can Installed

Product Description:

The 034Motorsport Billet Aluminum DSG Breather Catch Can for the Audi 8Y A3, S3, or RS3 replaces the tiny OE plastic vent and prevents transmission fluid from being forced out and splashing around the engine bay. When the DSG heats up, especially when launch control is used, it is common for DSG fluid to escape through the breather hose on the transmission, coating the entire underside of the hood and engine bay in DSG fluid.

The 034Motorsport Billet Aluminum DSG Breather Catch Can addresses the issues with the factory breather, allowing for ample system breathability while trapping any fluid that escapes out of the breather hose and draining it back into the DSG. Installing this beautiful billet catch can will improve the appearance of your A3, S3, or RS3’s engine bay and eliminate unsightly oil stains!

The body of the catch can is CNC milled from 6061-T6 billet aluminum and black anodized for a durable and stealthy finish. Internally, a stainless steel baffle plate prevents transmission oil from escaping the system. External mounting brackets are powder coated to prevent corrosion and enhance appearance. The OEM plastic vent hose is replaced with an 8mm I.D. silicone vent hose while retaining the OE connector at the transmission. Finally, all mounting points for the DSG catch can are stock mounting points, which makes for an easy installation with no drilling or cutting necessary.

DSG Catch Can Diagram

Features:

  • 6061-T6 Billet Aluminum Housing
  • Black Anodized Finish for Durability and Stealth
  • Stainless Steel Internal Baffle Plate
  • Powder Coated Vehicle Mounting Brackets
  • 8mm I.D. Silicone Vent Hose
  • Retains the OE Connector at the Transmission
  • Utilizes Available Stock Mounting Points
  • Eliminates Transmission Oil Splatter in Engine Bay

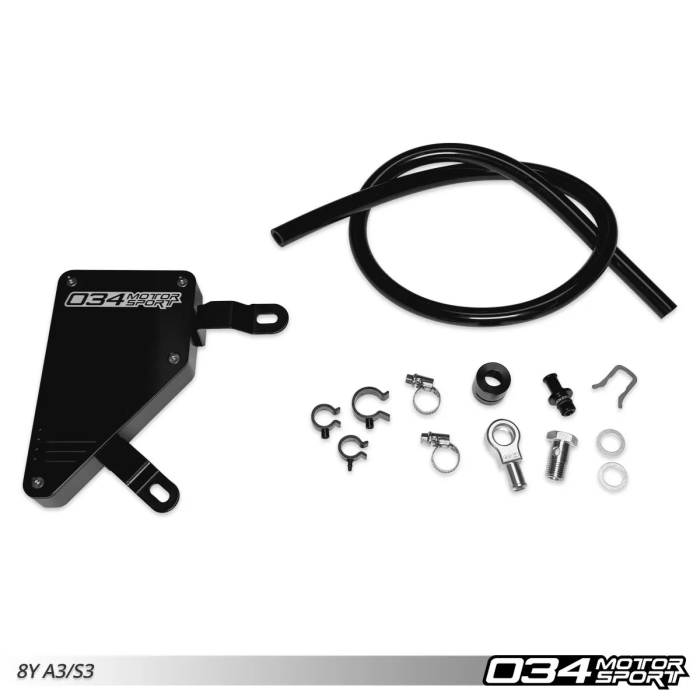

What's Included:

8Y A3/S3

  • (x1) Billet Aluminum DSG Catch Can Body with Brackets
  • (2ft) 8mm I.D. Silicone Vent Hose
  • (x1) Zinc Plated Steel 14mm x 1.5 Banjo Bolt
  • (x1) Billet Aluminum Transmission Breather Adapter Fitting
  • (x1) Custom-Machined Billet Aluminum 14mm Banjo Fitting
  • (x2) 14mm x 20mm Aluminum Crush Washer
  • (x2) M8x16 Worm Drive Clamps
  • (x1) 14-15mm to 20-25mm Swivel Clip

8Y RS3

  • (x1) Billet Aluminum DSG Catch Can Body with Brackets
  • (2ft) 8mm I.D. Silicone Vent Hose
  • (x1) Zinc Plated Steel 14mm x 1.5 Banjo Bolt
  • (x1) Custom-Machined Billet Aluminum 14mm Banjo Fitting
  • (x2) 14mm x 20mm Aluminum Crush Washer
  • (x2) M8x16 Worm Drive Clamps
  • (x1) 14-15mm to 20-25mm Swivel Clip
This product fits the following models
Vehicle Application Data
