034 Motorsport - Density Line Adjustable Upper Control Arm Kit
SKU:
034-401-1061/2
Availability: Discontinued ?"Ships in" reflects an estimated lead time before this item will leave via the shipping method selected.Please Note: Selecting an expedited shipping method during the checkout process will not change the "Ships in" time frame.
$546.00
Density Line Adjustable Upper Control Arm Kit, B9 Audi A4/S4, A5/S5, Allroad (Camber Correcting)
CAMBER CORRECTING BACKORDERED: Orders placed today will hold your spot in line for the next available units, Mid December 2022 ETA

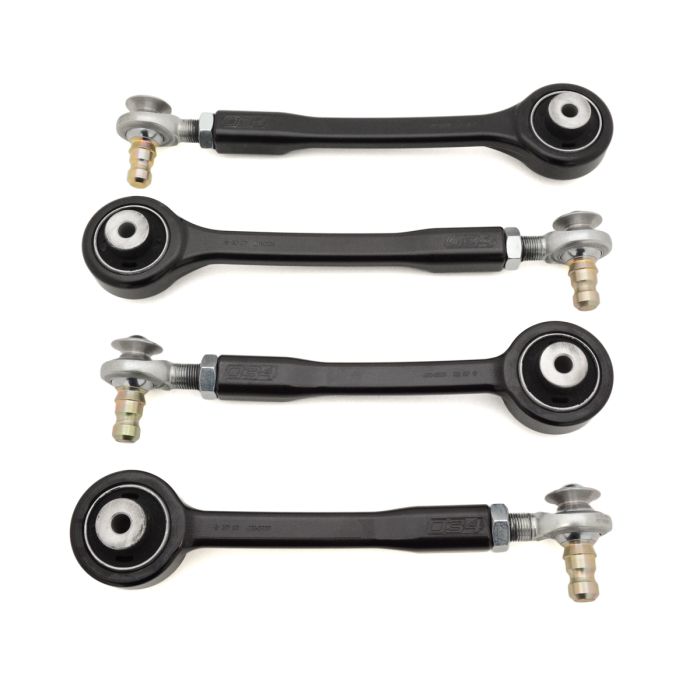

034Motorsport's Density Line Adjustable Upper Control Arm Kit for B9 Audi A4/S4, A5/S5/RS5, and Allroad replaces the fixed factory front upper control arms to allow for precise, independent camber adjustments. Featuring CNC-machined billet aluminum construction, high-durometer rubber bushings, and genuine Aurora spherical rod ends, Density Line Adjustable Control Arms are limit unwanted deflection in the suspension, resulting in tighter handling and more precise steering response than even brand new factory control arms can offer.
Density Line Adjustable Upper Control Arms for the B9 platform are available in two versions depending on your specific needs: Camber Correcting to add positive camber to reach factory alignment specifications and reduce tire wear after lowering, and Track Spec to gain additional negative camber for increased cornering grip and improved handling performance.
Benefits
Complete, Drop-In Replacement for Factory Control Arms
Precisely Adjust Camber Independently at Each Front Wheel
Reduce Deflection to Maintain Suspension Geometry Under Load
Improve Handling Feel & Steering Precision
Features
CNC-Machined Billet Aluminum Arms for Strength
High-Durometer Rubber Bushings (65 Durometer)
Genuine Aurora Spherical Rod Ends
Anodized Finish for Durability
Rebuildable Design
What's Included
Adjustable Front Upper Control Arms - Front (Left & Right)
Adjustable Front Upper Control Arms - Rear (Left & Right)
Rubber Dust Boots (Set of 4)
Camber Correcting
Add Positive Camber to Achieve Factory Alignment Specifications After Lowering and Reduce Tire Wear
+1.0 to +2.0 Degrees of Adjustment vs. Factory Arms (No Modification Required)
-0.2 to +2.0 Degrees of Adjustment vs. Factory Arms (With Minor Clearancing of Upright)
Black Anodized Finish
Track Spec
Gain Negative Camber for Increased Cornering Grip, Better Turn-In, and Improved Handling
-0.7 to +0.3 Degrees of Adjustment vs. Factory Arms (No Modification Required)
-1.9 to +0.3 Degrees of Adjustment vs. Factory Arms (With Minor Clearancing of Upright)
Clear Anodized Finish
Application Guide
Fitment:
2017 - Present Audi A4 (B9)
2018 - Present Audi S4 (B9)
2018 - Present Audi A5 (B9)
2018 - Present Audi S5 (B9)
2018 - Present Audi RS5 (B9)
2017 - Present Audi Allroad (B9)
Replaces:
8W0407505C
8W0407506C
8W0407509B
8W0407510B
Installation & Warranty
Installation:
It is imperative that the suspension be compressed to static ride height before any suspension pivot bushings are tightened, as per the factory installation procedure. If this is not done, the bushings will tear prematurely as the twisting forces on them will be much higher than is intended. 034Motorsport's Limited Warranty on Density Line products does not cover premature failure due to improper installation or use.
We highly recommend professional installation for this product.
Warranty:
1 Year Limited Replacement Warranty (If you encounter any issues with our products outside of the warranty period, we will work with you to provide a resolution.)
