Insert Set, Rear Sub, F3x BMW

Insert Set, Rear Sub, F3x BMW

Insert Set, Rear Sub, F3x BMW

SKU:
034-601-0052

Ships In: Ships Directly from Supplier ? "Ships in" reflects an estimated lead time before this item will leave via the shipping method selected.Please Note: Selecting an expedited shipping method during the checkout process will not change the "Ships in" time frame.

was Regular Price897 $206.00 Special Price453 $185.40
  • FREE Worldwide Shipping

    Fast & free shipping

    On all orders over $99.00

  • Money Back Gurantee

    Money Back Gurantee

    7 days money back gutarantee

  • SUPPORT 24/7

    Support 24/7

    We support 24/24h on day

  • Safe shopping guarantee

    Secure Payment

    Safe shopping guarantee

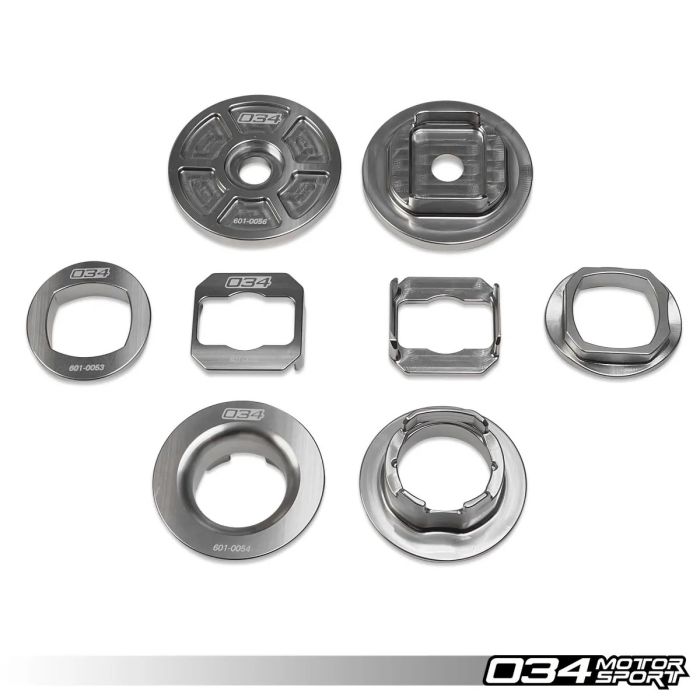

The BMW F2x/F3x chassis use rubber rear subframe mounts that deflect under load, causing the rear end to feel vague and loose, as well as leading to less-than-optimal suspension geometry and increased understeer. These precision-machined billet aluminum inserts are designed to fill voids in the factory rear subframe mounts, and limit subframe movement without sacrificing ride quality or introducing any perceivable additional noise, vibration, or harshness into the cabin. The result is a more refined, connected driving experience, as well as improved effectiveness of aftermarket rear sway bar upgrades and suspension components.

Designed to work in conjunction with the factory rubber mounts, this insert package was engineered using CAD software and thoroughly tested and refined to provide a significant improvement in handling performance and feel.

These inserts were tested extensively by 034Motorsport and independent BMW enthusiasts before release on multiple F2x/F3x vehicles. Installation is very simple, can be performed in under an hour, and is completely reversible.

FEATURES:

  • 6061 Billet Aluminum Construction
  • CNC-Machined
  • Clear Anodized Finish for Durability
  • Engineered to Fill Voids In Factory Rear Subframe Mounts
  • Helps Maintain Proper Suspension Geometry When Cornering
  • Reduces Rear Subframe Movement During Launches & Acceleration
  • Improves Shifting Feel, Resulting in Crisper Shifts
  • Virtually No Additional NVH Transfer Inside Cabin
  • Easy, Straightforward Installation

PART NUMBER EXCHANGE:

  • Front Bushing: 33 31 6 792 509
  • Rear Bushing: 33 31 6 792 511

WHAT’S INCLUDED:

  • (Qty. 2) Upper Front Inserts
  • (Qty. 2) Upper Rear Inserts
  • (Qty. 2) Lower Front Inserts
  • (Qty. 2) Lower Rear Inserts

ASSOCIATED (RECOMMENDED) OE PARTS:

  • (Qty. 4) Bolt: 33 30 6 793 892
