Billet Aluminum Front Subframe Bushings | Audi B5/B6/B7 Chassis

Billet Aluminum Front Subframe Bushings | Audi B5/B6/B7 Chassis

Billet Aluminum Front Subframe Bushings | Audi B5/B6/B7 Chassis

Share
SKU:
034-601-0000

Ships In: Ships Directly from Supplier ? "Ships in" reflects an estimated lead time before this item will leave via the shipping method selected.Please Note: Selecting an expedited shipping method during the checkout process will not change the "Ships in" time frame.

$186.00
  • FREE Worldwide Shipping

    Fast & free shipping

    On all orders over $99.00

  • Money Back Gurantee

    Money Back Gurantee

    7 days money back gutarantee

  • SUPPORT 24/7

    Support 24/7

    We support 24/24h on day

  • Safe shopping guarantee

    Secure Payment

    Safe shopping guarantee

Finally deal with those rubber subframe bushings once and for all and dramatically increase the ability to hold suspension geometry under severe cornering forces. Stock rubber subframe bushings, while quiet and cushy, deflect under loads and allow the subframe to shift - which causes camber, caster and other geometry changes.

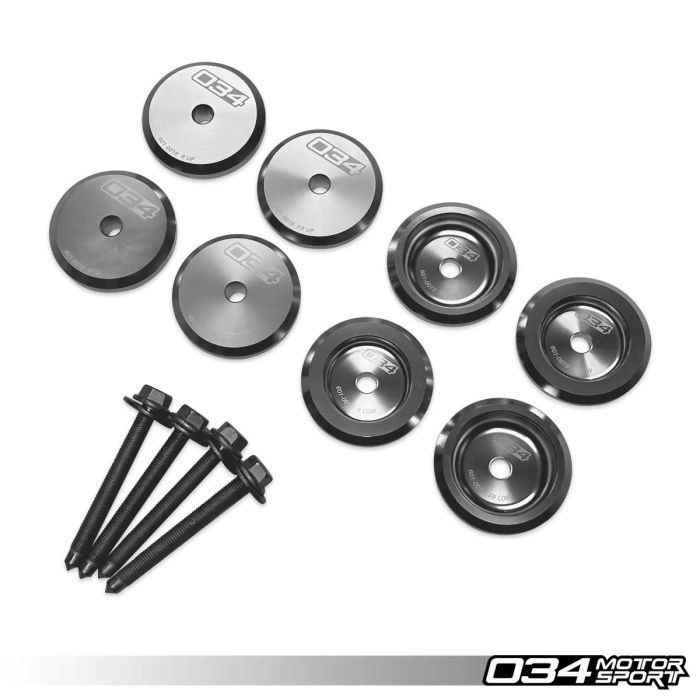

Designed with specific upper and lower halves for both the front and rear of the front subframe, our bushings are also individually labeled for ease of installation.

Includes enough pieces for one front subframe on Audi B5/B6/B7 chassis & C5 Audi A6/S6. Precision CNC machined in house from billet 6061 aluminum.

NOTE: This kit will not fit cars with a CVT transmission.

New OEM subframe bolts now included with every bushing set!

NOTE - Our bushings are precision CNC machined to within a few ten-thousandths of an inch, however the stock steel subframe has VERY sloppy tolerances.  Due to this, it will be required to clearance your subframe to fit these bushings, a sanding roll or carbide grinding bit can be used.  The amount of material varies on each subframe.  Audi made these very sloppy as the stock subframe bushings have plastic sleeves, however our billet aluminum bushings require a much higher tolerance fit.

This product fits the following models
Vehicle Application Data
Brand Model Year Engine Transmission Drivetrain
Audi A4 B5 (1996-2001) 1.8T Auto (5 Speed) AWD
Audi A4 B5 (1996-2001) 1.8T Manual (5 Speed) AWD
Audi A4 B5 (1996-2001) 2.8L V6 Automatic AWD
Audi A4 B6 (2002-2005) 1.8T Automatic AWD
Audi A4 B6 (2002-2005) 3.0L V6 Automatic AWD
Audi A4 B7 (2005-2008) 2.0T FSI Auto (CVT) FWD
Audi A4 B7 (2005-2008) 2.0T FSI Automatic AWD
Audi A4 B7 (2005-2008) 2.0T FSI Manual AWD
Audi A4 B7 (2005-2008) 3.2L V6 FSI Automatic AWD
Audi A4 B7 (2005-2008) 3.2L V6 FSI Manual AWD
Audi S4 B5 (2000-2002) 2.7T V6 Auto (5 Speed) AWD
Audi S4 B5 (2000-2002) 2.7T V6 Auto (6 Speed) AWD
Audi S4 B5 (2000-2002) 2.7T V6 Manual (6 Speed) AWD
Audi S4 B6 (2004-2005) 4.2L V8 Auto (6 Speed) AWD
Audi S4 B6 (2004-2005) 4.2L V8 Manual (6 Speed) AWD
Audi S4 B7 (2005-2009) 4.2L V8 Auto (6 Speed) AWD
Audi S4 B7 (2005-2009) 4.2L V8 Manual (6 Speed) AWD
