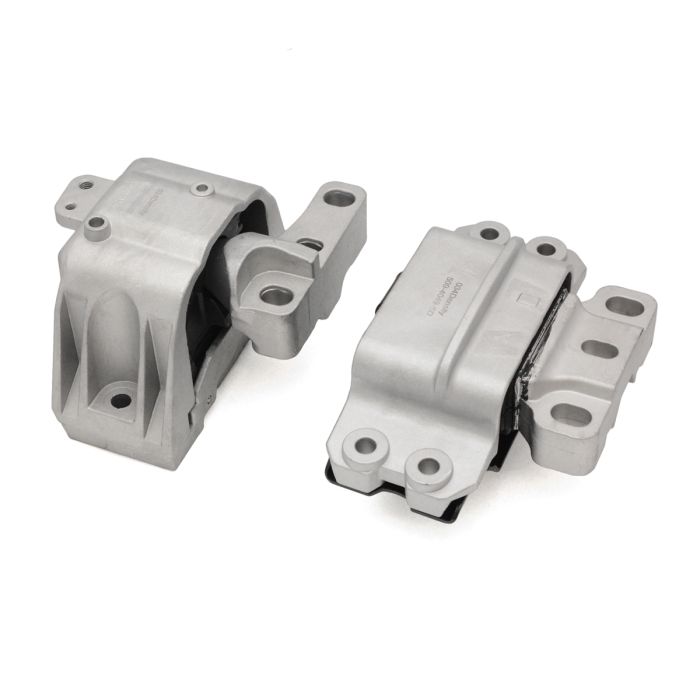

We're proud to announce the availability of the Density Line Engine Mount Pair for MkV/MkVI Volkswagen Golf/Jetta & 8P Audi A3 2.0 TDI models!

034Motorsport's Density Line Mounts are the new standard in comfort and performance. Our mounts are redesigned with performance in mind, and manufactured from high-durometer rubber for increased performance and durability, without sacrificing comfort. Density Line Mounts are optimized void-free and fluid-free, eliminating the slop associated with the factory mounts.

Street Density:

The Street Density Engine Mount Pair is manufactured from 60 durometer rubber, which is approximately 35% stiffer than stock. Since the mounts are also void-free and solid-filled, the resulting mount is approximately 60% stiffer than stock. The cast aluminum mount bodies have also been redesigned to cope with the added stress of spirited driving.

The result is greatly reduced drivetrain slop, crisper shifting, and minimal wheel hop, without any significant increase in noise, vibration, or harshness (NVH) inside of the cabin. These mounts are a completely re-engineered performance solution, not just inserts for use with the factory mounts.

Features:

  • Manufactured from 60 Durometer (Street Density) Rubber with Optimized Void-Free Construction
  • Reduced Drivetrain Slop
  • Decreased Engine Movement Under Load
  • More Direct Power Transfer
  • Improved Shifting Feel
  • Complete Drop-In Replacement of Factory Engine/Transmission Mounts
  • DQ250 DSG and 02Q Manual Transmission Compatible
  • Sold in Pairs (One Engine Mount  & One Transmission Mount)

Fitment:

  • Note: The transmission mount in this kit will not fit cars with 6-spd manual/6-spd dsg/4motion.

  • 2005 - 2010 Volkswagen Jetta (MkV)
    • 2.0 TDI
  • 2011 - 2017 Volkswagen Jetta (MkVI)
    • 2.0 TDI (not for manual transmissions)
  • 2010 - 2014 Volkswagen Golf (MkVI)
    • 2.0 TDI
  • 2006 - 2013 Audi A3 (8P)
    • 2.0 TDI

Replaces:

  • 1K0199262AM / 1K0 199 262AM
  • 1K0199555Q / 1K0 199 555Q
  • 1K0199555R / 1K0 199 555R
034Motorsport Density Line Mounts for B6 Volkswagen Passat 2.0T Tiptronic vs. Factory Mounts

High-Durometer Rubber vs. Polyurethane:

Density Line Mounts are manufactured from high-durometer rubber instead of polyurethane for a number of reasons. While vulcanized rubber mounts are more expensive to prototype due to increased complexity of manufacturing and high initial tooling costs, rubber is inherently better than polyurethane as a damping medium for mounts and bushings.

Rubber is able to deal with stress under both tension and compression, while polyurethane mounts rely on the damping medium to be effective only under compression. Rubber is also excellent in shear, where polyurethane is ineffective, making it ideal for control arm bushings that apply a shear force to the bushing during articulation.

Rubber does not pack and wear like polyurethane does, which ultimately results in a long-lasting part with consistent performance and comfort.

These mounts are currently available in Street Density only.

NOTE: This Street Density Mount application features stiffer and less compliant rubber, however, the mount is not designed to see significantly larger amounts of abuse, as Density Mounts use a similar design and construction to the OEM mounts. This means that driving dynamics are improved, but these mounts are not necessarily suited for more punishing applications or abuse. Normal "sport driving" will typically see these mounts lasting up to 50k miles or more. More abusive use, such as aggressive drag racing, clutch dumps, aggressive shifting, and big increases in power, can cause these mounts to fail or wear prematurely, typically in 20k miles or less. For mounts that will sustain the latter abusive scenarios, we strongly recommend our Motorsport Mounts which are designed for specifically for such use.

This product fits the following models
Vehicle Application Data
Brand Model Year Engine Transmission Drivetrain
Volkswagen Golf / Rabbit MK6 (2010-2014) 2.0 TDI DSG (6 Speed) FWD
Volkswagen Golf / Rabbit MK6 (2010-2014) 2.0 TDI Manual (6 Speed) FWD
Volkswagen Jetta MK5 (2006-2009) 2.0 TDI DSG (6 Speed) FWD
Volkswagen Jetta MK5 (2006-2009) 2.0 TDI Manual (6 Speed) FWD
Volkswagen Jetta MK6 (2011-2014) 2.0 TDI DSG (6 Speed) FWD
Volkswagen Jetta MK6 (2011-2014) 2.0 TDI Manual (6 Speed) FWD
Volkswagen Jetta MK6.5 (2015-2018) 2.0 TDI DSG (6 Speed) FWD
Volkswagen Jetta MK6.5 (2015-2018) 2.0 TDI Manual (6 Speed) FWD
Volkswagen Sportwagen / Alltrack MK6 (2010-2014) 2.0 TDI DSG (6 Speed) FWD
Volkswagen Sportwagen / Alltrack MK6 (2010-2014) 2.0 TDI Manual (6 Speed) FWD
