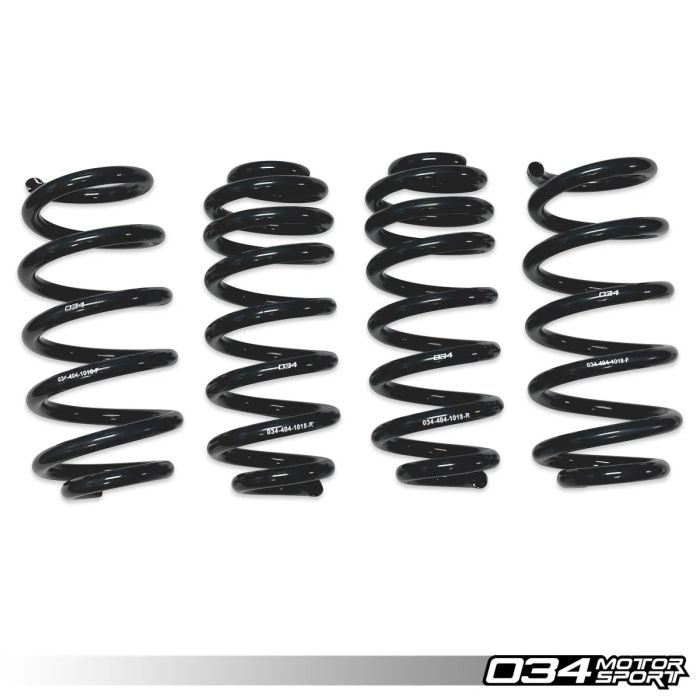

Dynamic+ Lowering Springs | Audi 4M/4M.5 Q7

Developed specifically for the 4M/4M.5 Audi Q7, Dynamic+ Lowering Springs are engineered to improve handling performance and deliver superb ride quality. Designed as a true no-compromise solution, Dynamic+ Lowering Springs provide a visually pleasing yet functional stance, and reward drivers with precise vehicle control and OEM+ comfort levels. During our intensive long-term testing, we saw no detriment to strut life or detrimental ride quality difference. These springs were engineered in-house and tested extensively before release to ensure that they deliver the ideal combination of performance, comfort, and reliability.

Dynamic+ Lowering Springs were thoroughly tested on the street on 034Motorsport's 2018 Audi Q7, and by independent Q7 enthusiasts before release. 034Motorsport underwent multiple variations of lowering spring, balancing handling, ride height, and comfort.

Each set of Dynamic+ Lowering Springs is manufactured in the USA at an ISO 9001 certified facility, and tested to 034Motorsport's exacting specifications to ensure they deliver unmatched performance for the discerning Audi enthusiast.

WHY ARE DYNAMIC+ COIL SPRING SLEEVES NEEDED?

When designing 034Motorsport Dynamic+ Lowering Springs, we are not simply making a shorter spring. With lowering springs, the misconception is that the overall coil length is shorter. The spring itself is actually the same length as the OEM spring but they are designed with some of the coils in the spring closer together, which "stack" under weight, giving you the lowered ride height. Since the coils are physically closer to one another, when the suspension compresses and decompresses, the coils stack and rise.

Coils stacking is engineered into the design of the majority of aftermarket lowering springs, aftermarket coilovers, and sometimes even OEM suspension. This depends largely on the design of the car during the engineering process.

In some cases when these coils stack under heavy, they can create excess noise. For this reason, 034Motorsport offers Dynamic+ Coil Spring Sleeves to dampen the noise between coils. Not all Dynamic+ Lowering Springs will require these Coil Spring Sleeves, and for those that do, 034Motorsport includes a pair of Coil Spring Sleeves that are pre-installed in the appropriate location.

FEATURES:

• Improved Handling Performance
• Superb Ride Quality
• Improved Chassis Dynamics
• Reduced Body Roll & Understeer
• Lightweight, High-Strength Construction
• Shot Peened & Powdercoated
• Made in USA at ISO 9001 Certified Facility
• Note: Will Not Fit Vehicles With Factory Air Suspension Option
  • Click here to view Billet Lowering Links for Air Suspension Equipped Q7's.

RIDE HEIGHT:

• Front - Approximately 0.9" (23mm) Lower
• Rear - Approximately 1.18" (30mm) Lower

SPRING RATES:

• ~13% Increase in Front - 480 Pounds/Inch (Linear) (Stock: 425 Pounds/Inch)
• ~13% Increase in Rear - 590 Pounds/Inch (Linear) (Stock: 522 Pounds/Inch)

INSTALLATION TIPS:

• Click here to view installation tips.
• Installation Note: On the rear suspension, only the bottom spring perch has an indexing provision. Locate the bottom of the spring as per the indexing peg. Any perceived indexing on the upper mount is just an impression in the rubber from the old spring.
