Billet Drop-In Fuel Pump Adapter Kit - Bosch 60mm

034Motorsport now offers a Billet Aluminum Drop-In Fuel Pump Mounting Bracket for Audi Applications!

This bracket adapts high-flow Bosch 60mm fuel pumps to be installed directly into the factory basket.

Recommended Fuel Pumps:

• Bosch 040 "High-Output"
  • 500 Horsepower-Capable
  • Flow at 55 PSI: 175 LPH
  • Flow at 75 PSI: 155 LPH
• Bosch 044 "Motorsport"
  • 700 Horsepower-Capable
  • Flow at 55 PSI: 265 LPH
  • Flow at 75 PSI: 250 LPH

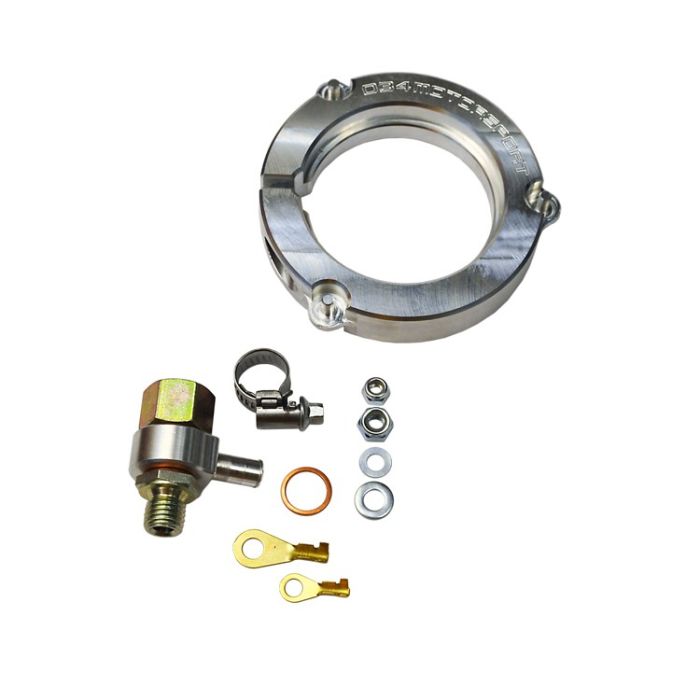

What's Included:

• Billet Aluminum Fuel Pump Mounting Bracket
• Check Valve
• Fuel Pump Outlet Fitting (Allows for use of the stock fuel line.)
• New Ring Terminals (To be crimped onto stock fuel pump wires.)

Fitment:

• C4 Audi S4/S6 AAN
  • When installing an upgraded fuel pump into a UrS4/S6, it is strongly recommended to use the 034Motorsport C4 Fuel Pump Relay Kit.
• B3 Audi Coupe Quattro I5 20V
• B3 Audi 90 Quattro I5 20V
• B3/B4 Audi S2/RS2
• B4 Audi 90 Quattro
• B5 Audi A4/S4/RS4
• C5 Audi A6/Allroad
  • The C5 Audi A6/Allroad will only accept the Bosch 040 "High-Output" Fuel Pump. The Bosch 044 "Motorsport" Fuel Pump is too tall to fit into the tank.
• B6 Audi A4
  • The B6 Audi A4 will only accept the Bosch 040 "High-Output" Fuel Pump. The Bosch 044 "Motorsport" Fuel Pump is too tall to fit into the tank.

Installation Instructions:

• Click Here for Installation Instructions

Please Note: The Bosch 044 "Motorsport" Fuel Pump option will not fit in the C5 or B6 gas tank. Please select the Bosch 040 "High-Output" Fuel Pump for proper fitment. FUEL PUMP IS NOT INCLUDED.
